Top Bending Series

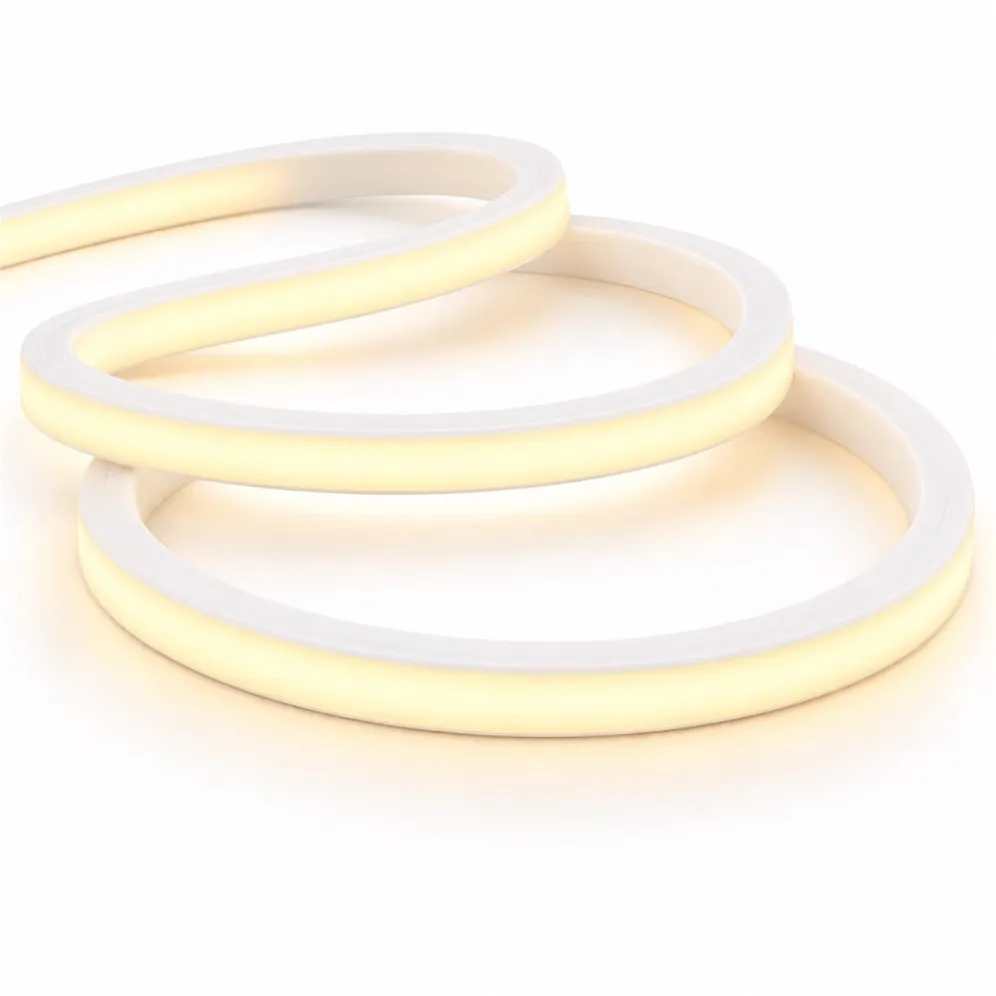

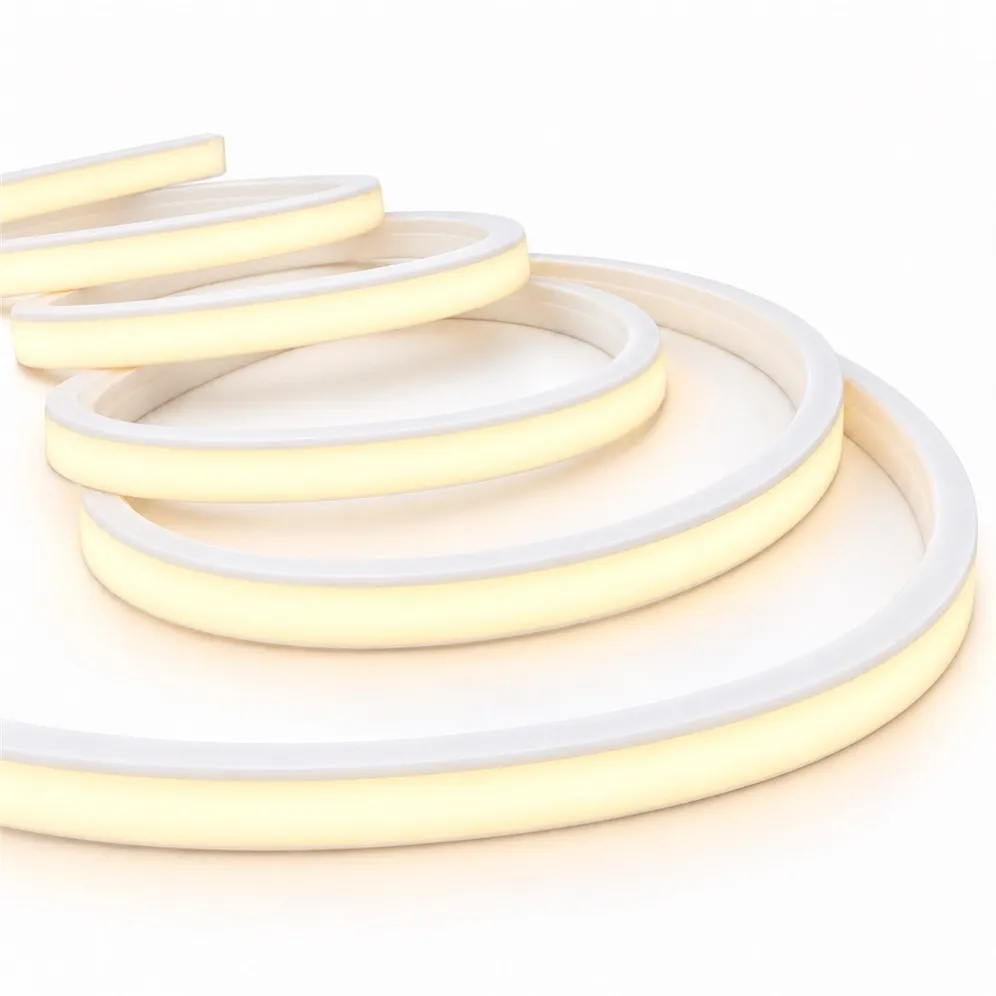

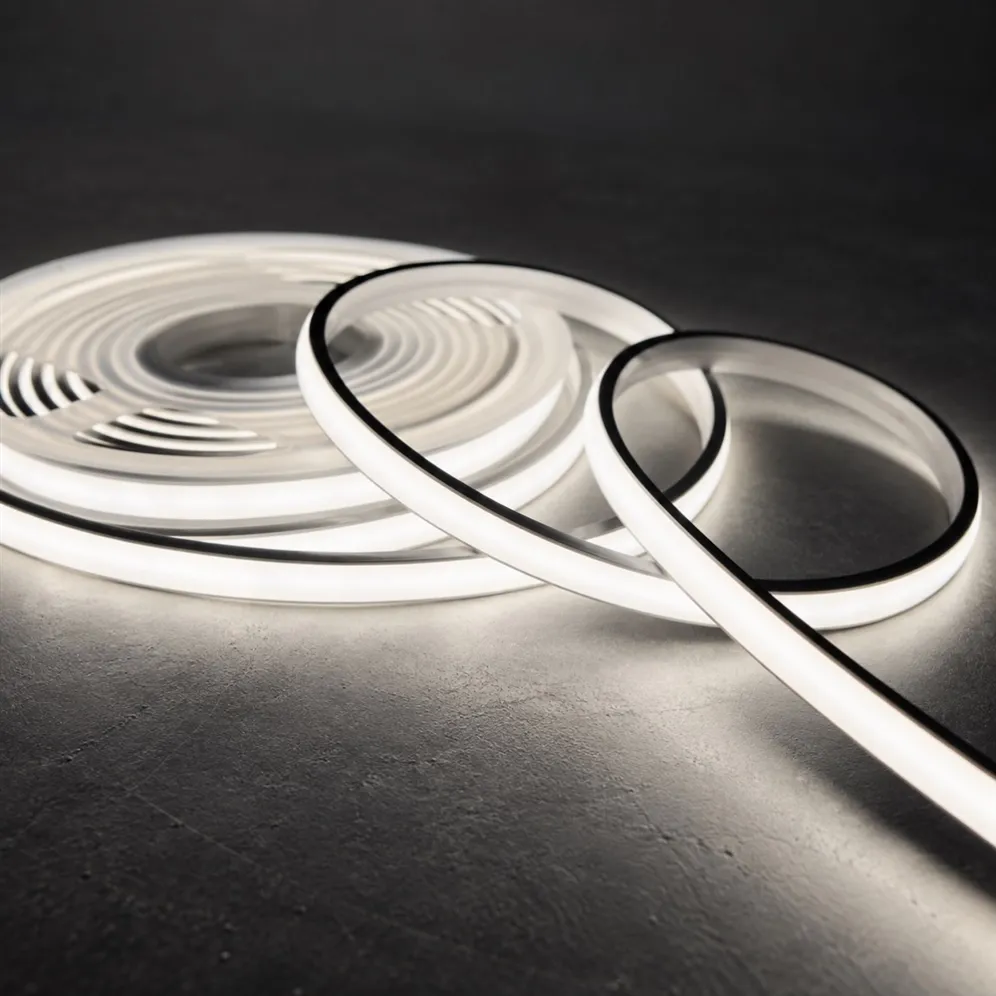

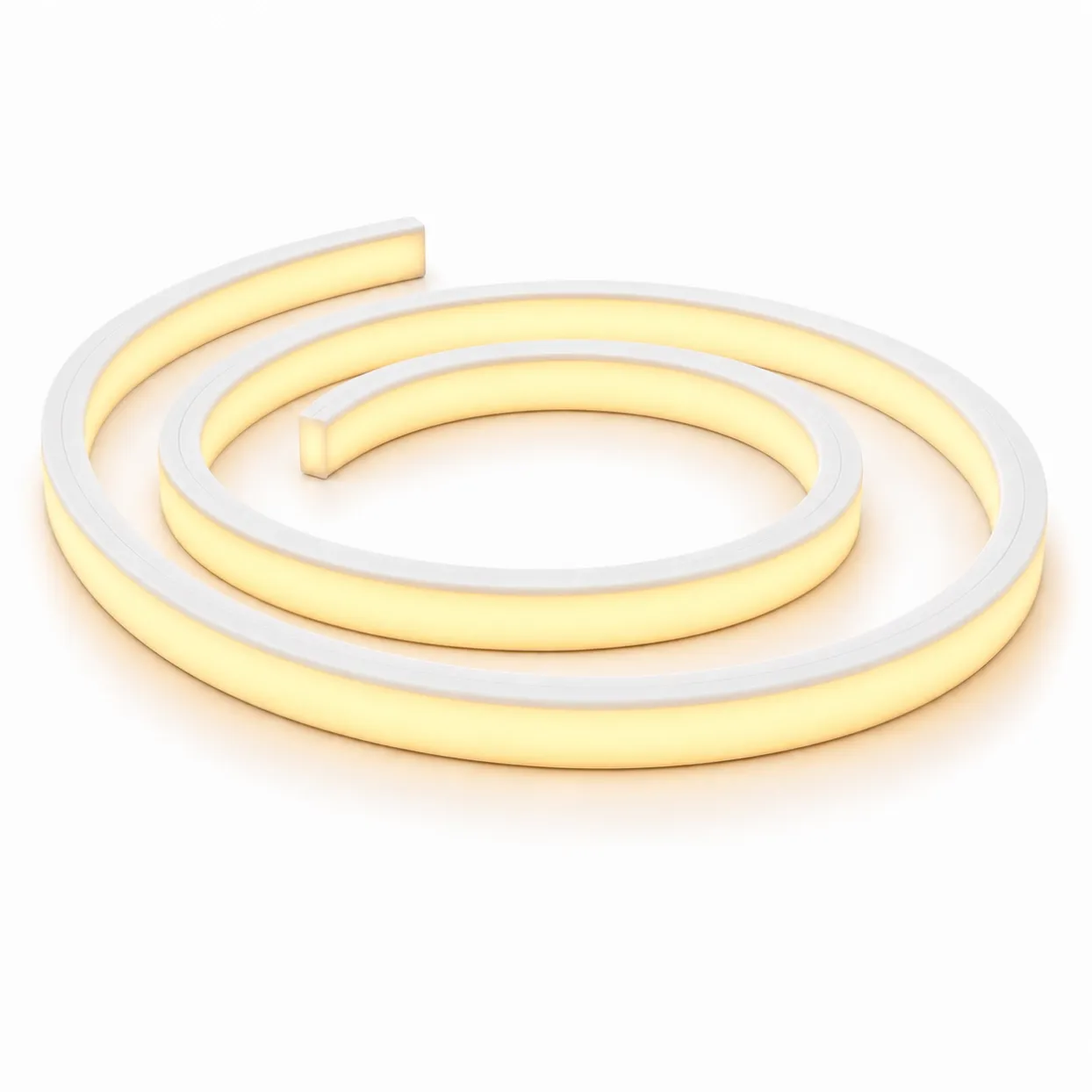

10×10mm Top Bending Silicon Neon LED Strip
1. High luminous efficacy with SMD2835, SMD3535, SMD5050 and other LED options, supported by LM-80 testing. 2. Top-bend design delivers greater brightness and suits a wider range of applications. 3. A distinctive optical light distribution structure ensures a uniformly illuminated surface without shadows. 4. Resistant to saline solutions, acids, alkalis, corrosive gases and UV exposure.
Specifications
- LED Type
- SMD2835 120LED/M
- Color
- 1800K-6500K
- Color Rendering Index
- Ra＞90
- Voltage Input
- DC 12V/24V
- Power
- 10W/M, 3.05W/ft
- Luminous Flux
- 700lm/M
- Beam angle
- 120°
- Cutting Unit
- 50mm@24V, 25mm@12V
- Vertical bending with a top-view design
- Equipped with high-brightness SMD2835 LED chips
- Long service life of over 50,000 hours
- Safe low-voltage operation at DC 12V or DC 24V
- Fully dimmable across the 0–100% range
- Wide 120° beam angle
- Resistant to UV exposure and saltwater
- Backed by a 3-year warranty
- ETL, CE, and RoHS certified
