Top Bending Series

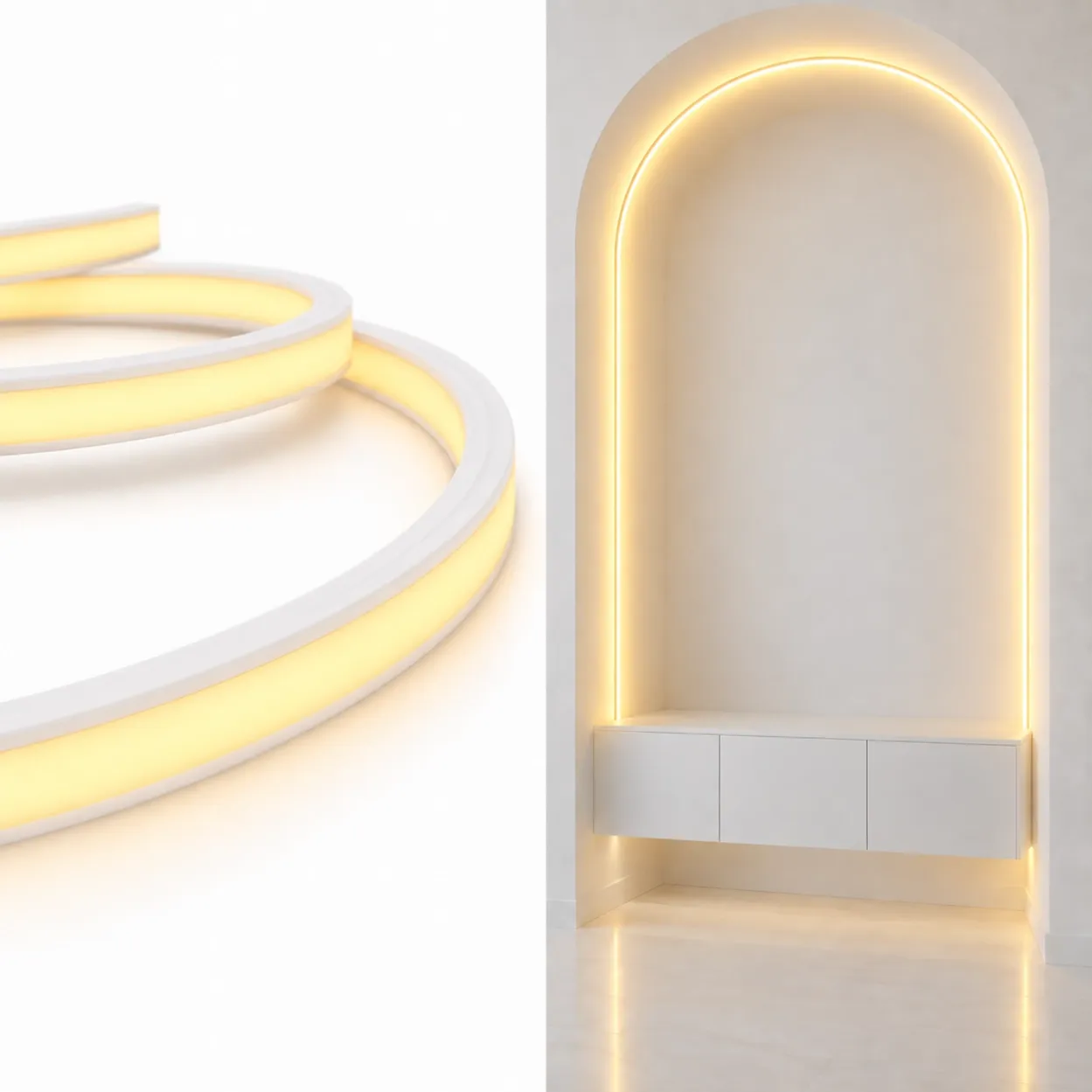

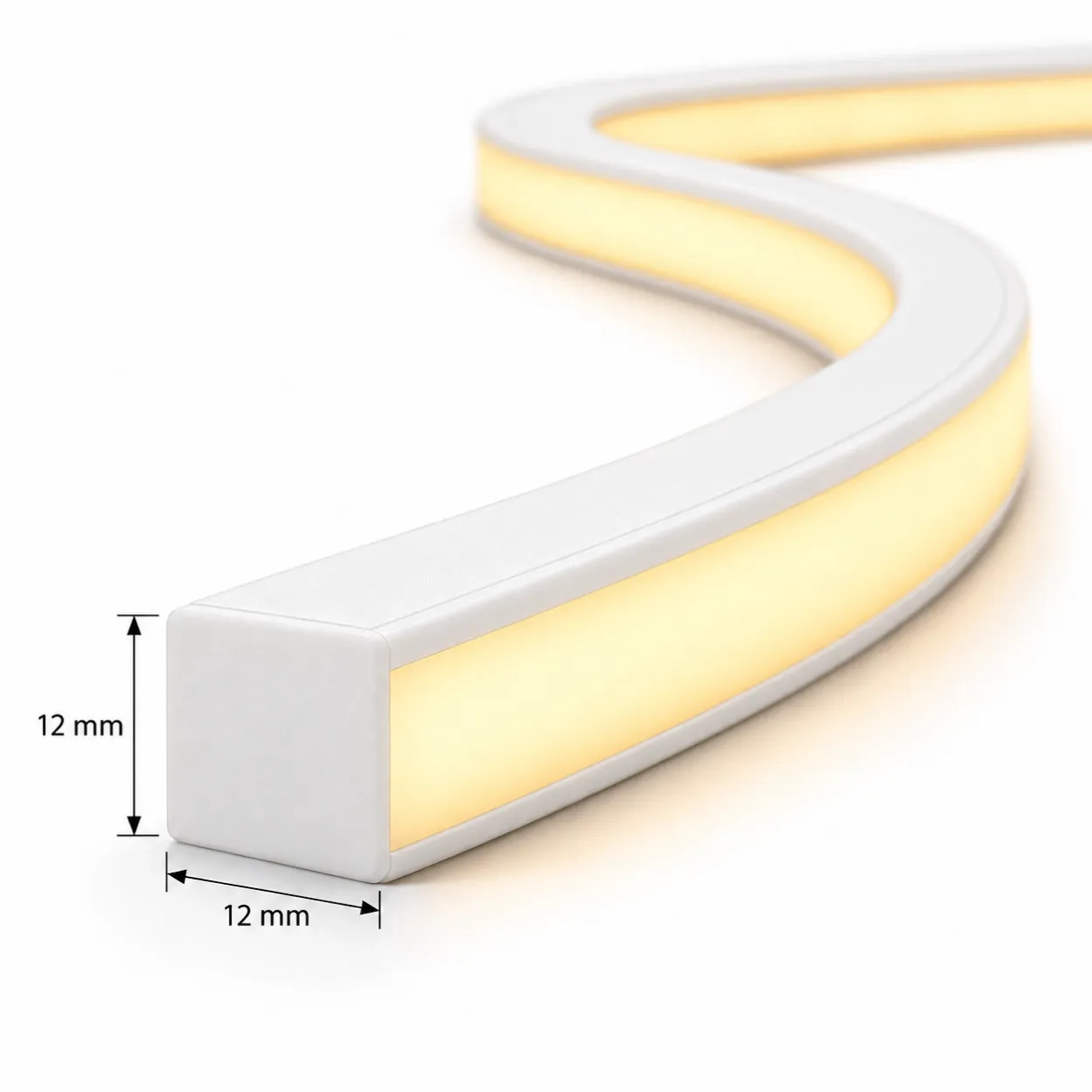

12×12mm Top Bending Silicon Neon LED Strip

1. High luminous efficacy with SMD2835, SMD3535, SMD5050 and other LED options, supported by LM-80 testing. 2. Top-bend design delivers greater brightness and suits a wider range of applications. 3. A distinctive optical light distribution structure ensures a uniformly illuminated surface without shadows. 4. Resistant to saline solutions, acids, alkalis, corrosive gases and UV exposure.

Specifications

LED Type
SMD2835 120LED/M
Color
1800K-6500K
Color Rendering Index
Ra＞90
Voltage Input
DC 12V/24V
Power
12W/M, 3.66W/ft
Luminous Flux
700lm/M
Beam angle
120°
Cutting Unit
50mm@24V, 25mm@12V
Vertical bending with a top-view design Equipped with high-brightness SMD2835 LED chips Long service life of over 50,000 hours Safe low-voltage operation at DC 12V or DC 24V Fully dimmable across the 0–100% range Wide 120° beam angle Resistant to UV exposure and saltwater Backed by a 3-year warranty ETL, CE, and RoHS certified
