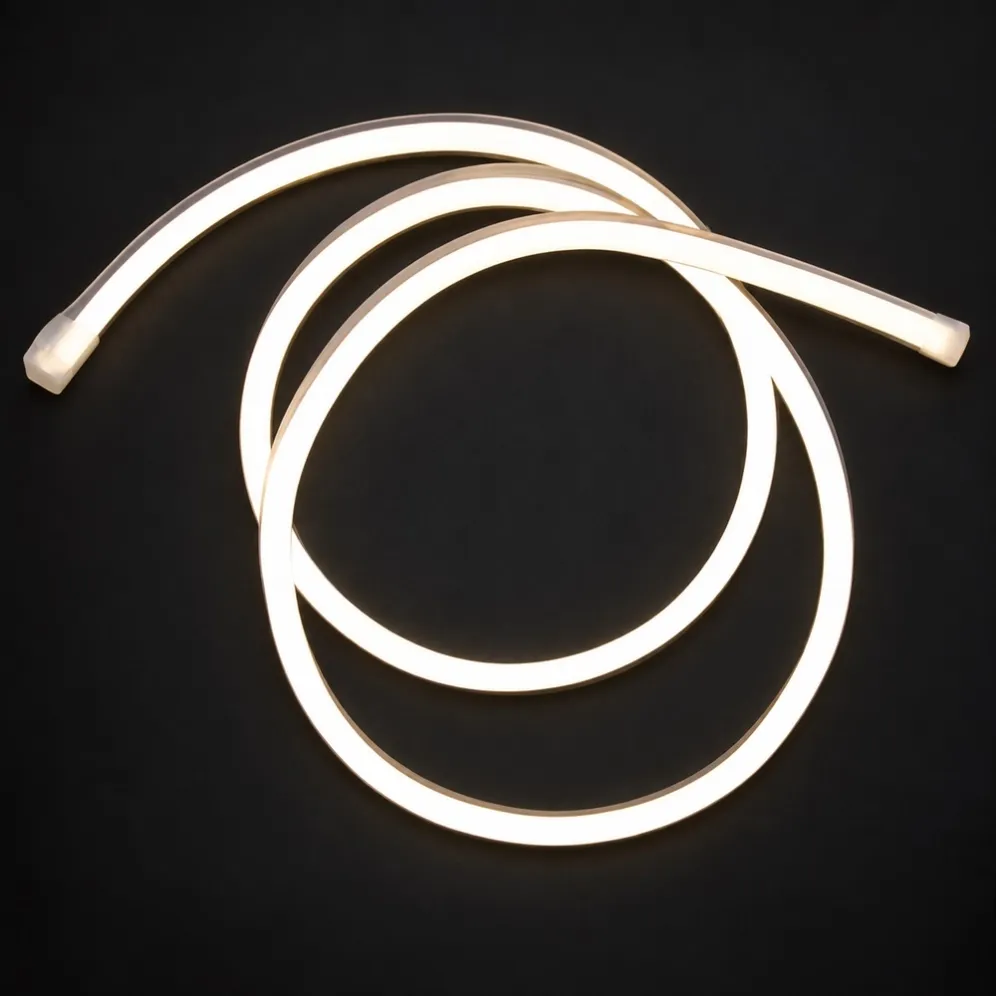

10x18-02-warm-white

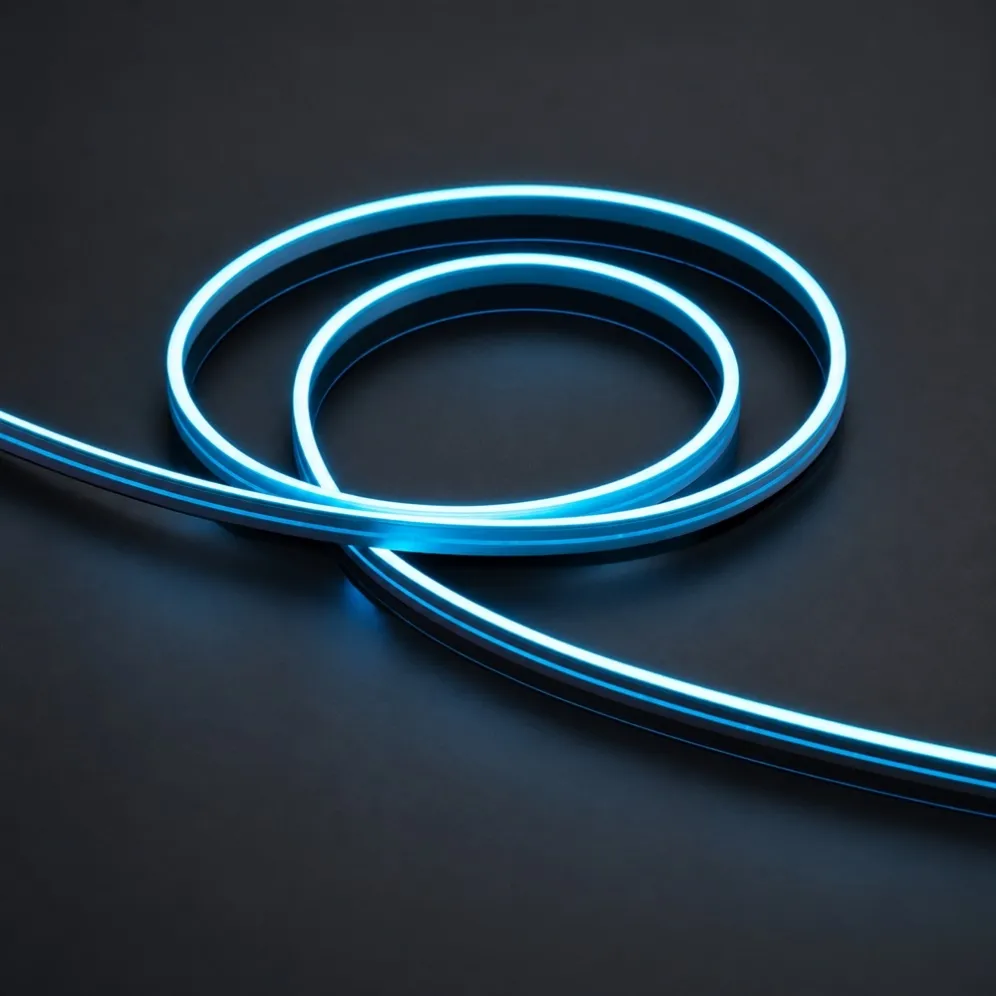

10x18-01-main

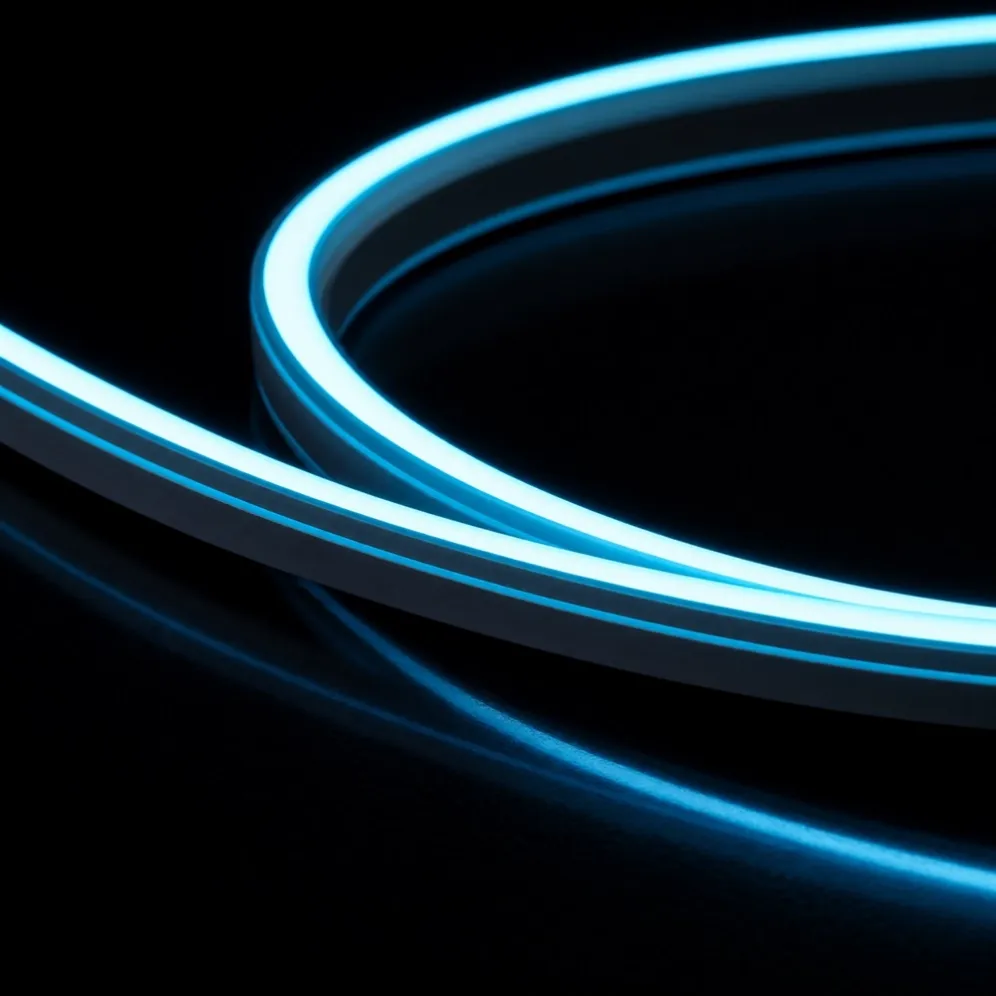

10x18-03-detail

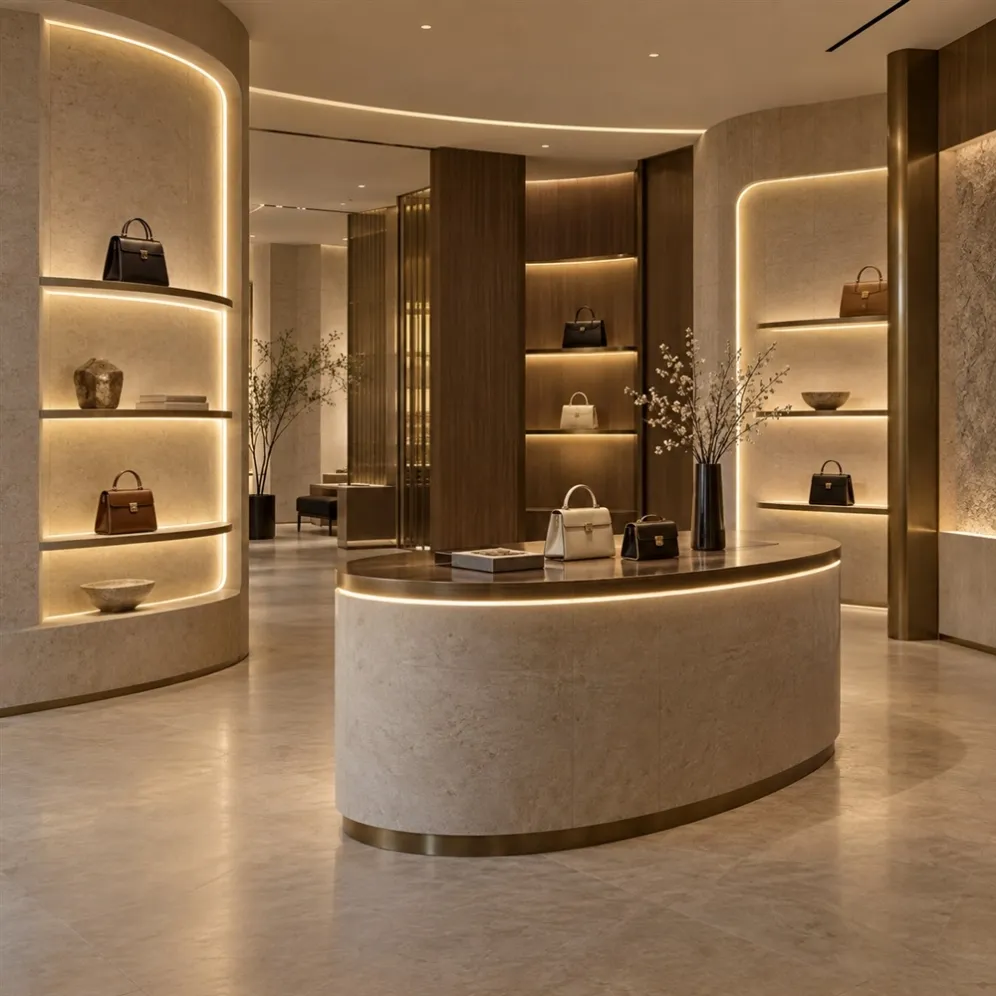

10x18-04-luxury-store

Side Bending Series

10×18mm Side Bending Silicon Neon LED Strip

1. High luminous efficiency with SMD2835, SMD3535, SMD5050, and other LED options, validated by LM-80 testing. 2. Flexible side-bending design, ideal for angled installations. 3. Unique optical light distribution structure ensures uniform, shadow-free illumination. 4. Resistant to saline solutions, acids, alkalis, corrosive gases, and UV exposure.

Specifications

LED Type: SMD2835 120LED/M
Color: 1800K-6500K
Color Rendering Index: Ra＞90
Voltage Input: DC 12V/24V
Power: 14W/M, 4.27W/ft
Luminous Flux: 420lm/M
Beam angle: 120°
Cutting Unit: 50mm@24V, 25mm@12V

Horizontal bending with side illumination

Injection-molded construction

Long service life of over 50,000 hours

Safe DC12V/DC 24V low-voltage operation

Wide 120° beam angle

IP67 protection rating

3-year warranty

UL, CE, and RoHS certified

Continue browsing

More products from the catalog

Pair it with other pieces from the same collection or routine.

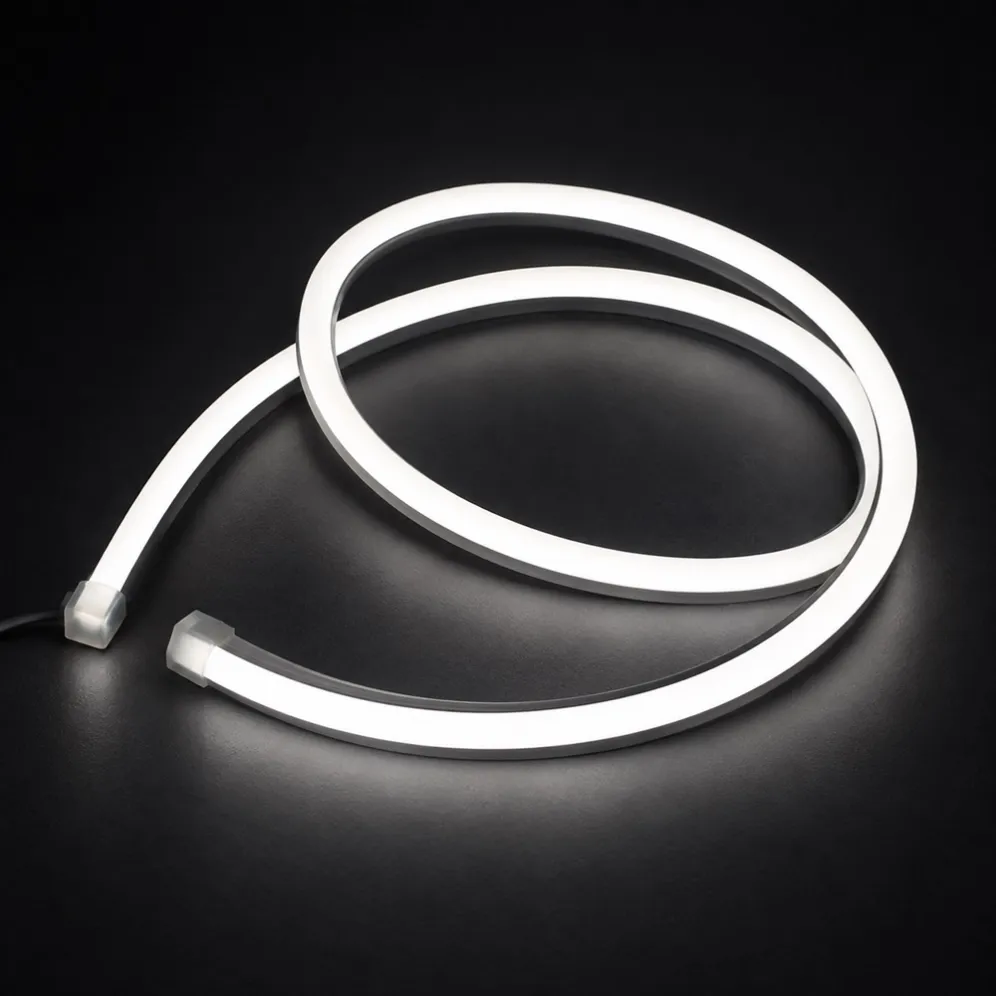

12x20-new-03-white

Side Bending Series

12×20mm Side Bending Silicon Neon LED Stri

1. High luminous efficiency with SMD2835, SMD3535, SMD5050, and other LED options, validated by LM-80 testing. 2. Flexible side-bending design, ideal for angled installations. 3. Unique optical light distribution structure ensures uniform, shadow-free illumination. 4. Resistant to saline solutions, acids, alkalis, corrosive gases, and UV exposure.

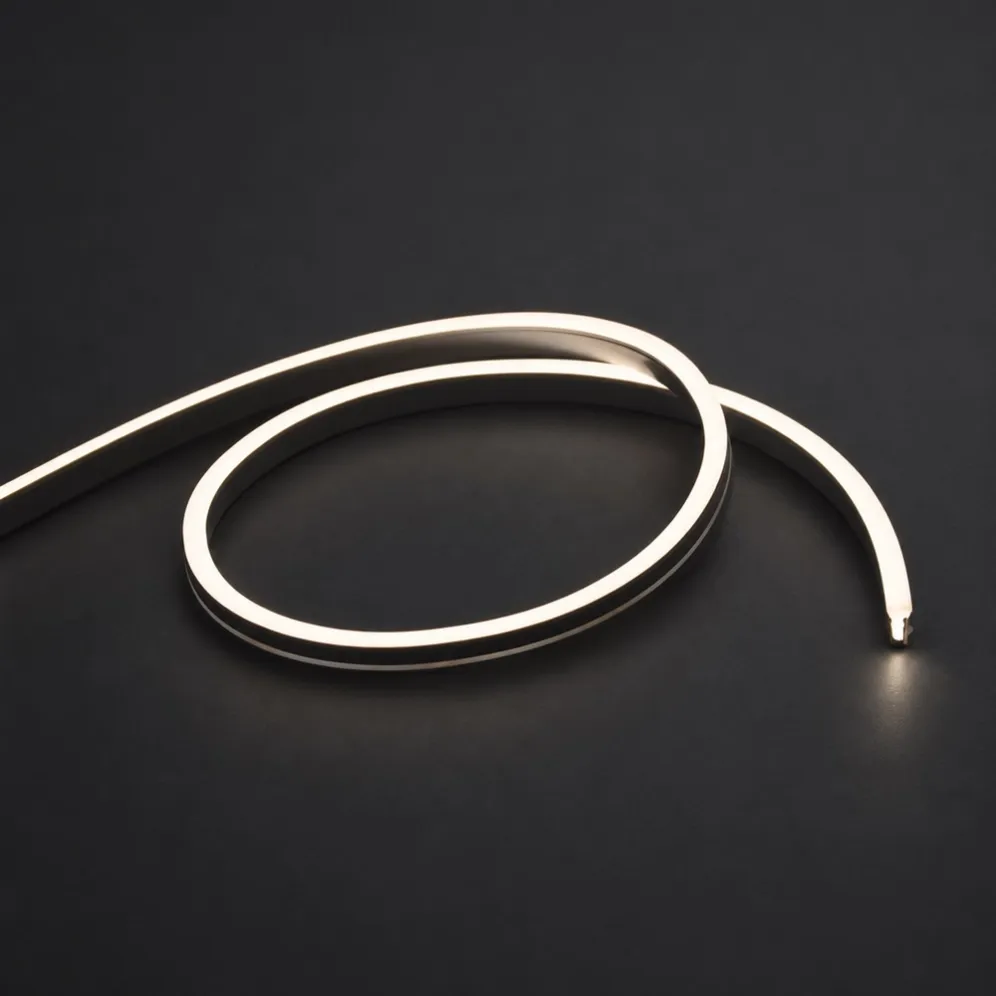

01-main-v2
