Side Bending Series

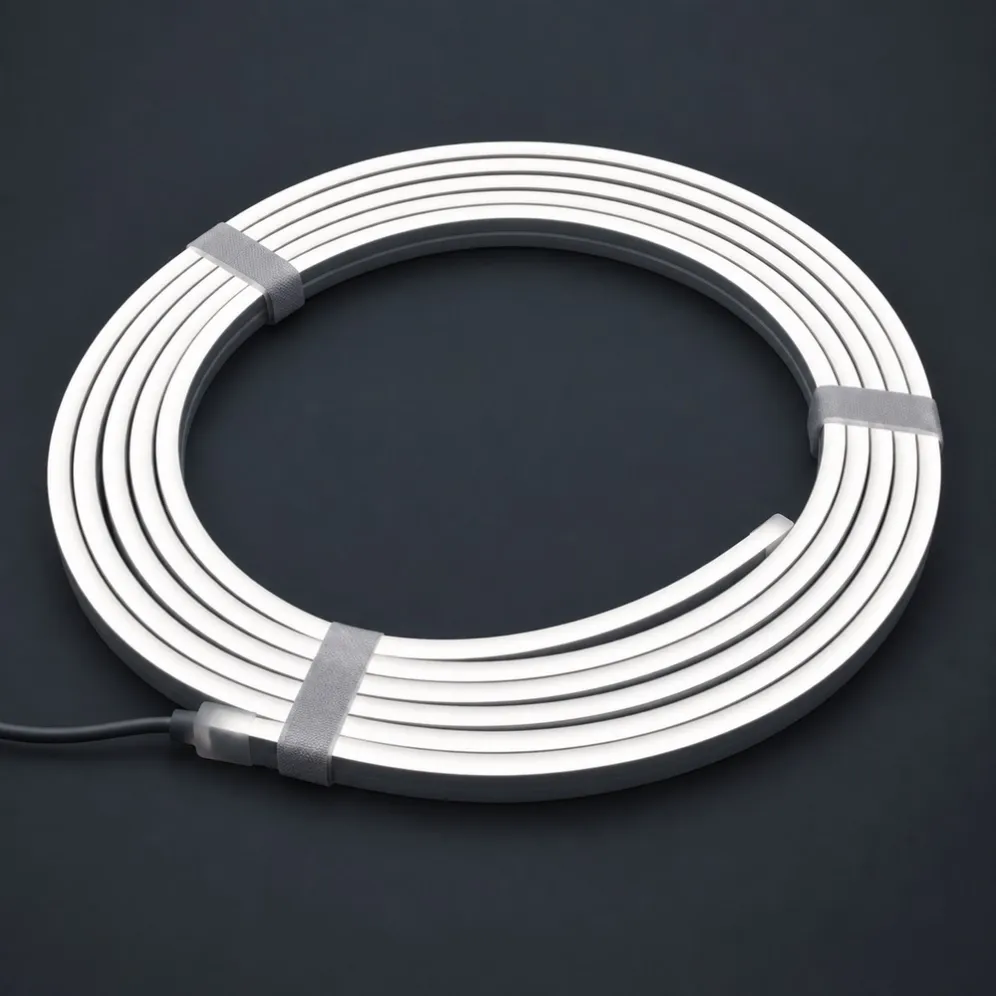

12×20mm Side Bending Silicon Neon LED Stri

1. High luminous efficiency with SMD2835, SMD3535, SMD5050, and other LED options, validated by LM-80 testing. 2. Flexible side-bending design, ideal for angled installations. 3. Unique optical light distribution structure ensures uniform, shadow-free illumination. 4. Resistant to saline solutions, acids, alkalis, corrosive gases, and UV exposure.

Specifications

LED Type: SMD2835 120LED/M
Color: 1800K-6500K
Color Rendering Index: Ra＞90
Voltage Input: DC 12V/24V
Power: 14W/M, 4.27W/ft
Luminous Flux: 301lm/M
Beam angle: 120°
Cutting Unit: 50mm@24V, 25mm@12V

Horizontal bending with side illumination

Injection-molded construction

Long service life of over 50,000 hours

Safe DC12V/DC 24V low-voltage operation

Wide 120° beam angle

IP67 protection rating

3-year warranty

UL, CE, and RoHS certified
